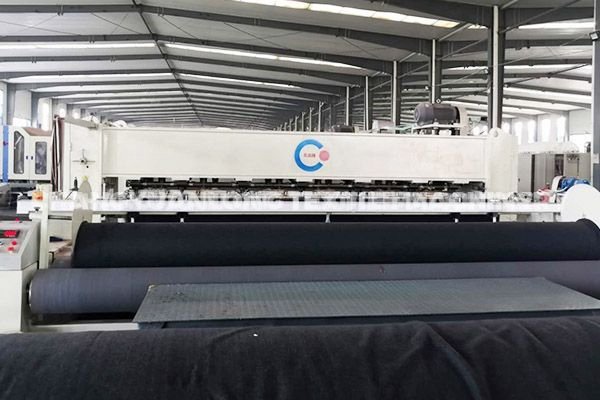

Hot air cotton/wadding making machine

-Hot air cotton/wadding making machine

√ Super wide

√ Many heads

√ High Yield

√ Good quality

APPLICATION

N95 mask filter cotton and ES hot air cotton are widely used because of their unique characteristics. Mainly used in mask filtering, baby diapers, adult incontinence pads, disposable tablecloths, etc. It is an environmentally friendly filling material. It has the characteristics of high bulkiness, good elasticity, soft hand feeling, strong warmth retention, good air permeability and so on.

Product Detiles

FEATURES

1.The frame is welded by high-quality steel, and the structure is stable.

2.Safety protection:

(1) All transmission parts are protected by protective covers.

(2) The electrical part is provided with overload protection, overcurrent protection, short circuit protection and emergency stop button.

(3) Warning signs are required for necessary parts.

SPECIFICATION:

Model	CYLRF-2400	CYLRF3000
Working width	2400mm	3200mm
Capacity	≤400kg/h	≤600kg/h
Power	About 150-300kw
The Quantity of carding machines	One,two,three
Heating method of the oven machine	Electric
The type of the oven machine	Round barrel oven

DETAILED DESCRIPTION

Process flow:

Bale Opener - -Big cabin blender - Opening Machine -Pneumatic cotton boxr -Carding Machine - The Oven Machine - Winder&Cutter

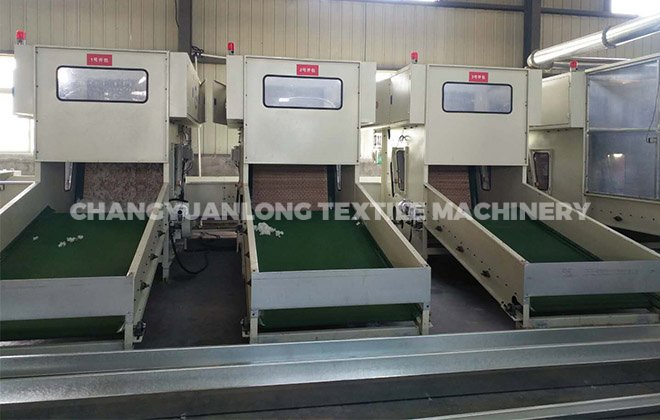

1. CYKB-Bale Opener: Open all kinds of baling fibers, weigh them by electronic scale according to the proportion, and spread them evenly on the cotton curtain. Various fibers are put into the horizontal conveying curtain, fed through the calender roll and counter roll, and opened by the high-speed beater and sent to the next process by the cotton conveying fan.

2. CYLDC-Big cabin blender：It is suitable for chemical fiber, raw cotton and cotton chemical fiber of various grades which have been initially opened, and is fully stored and mixed, and then evenly grabbed and fed by the oblique nail curtain to the flat curtain of the opening machine; the machine is controlled by two groups of photoelectric.

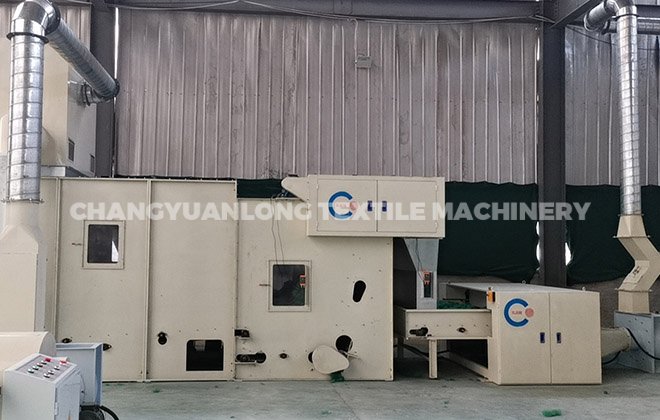

3.CYLKS-Opening machine: The company develops special alloy card clothing for opening. The fan conveys it. The feeding is wood curtain or leather curtain. The feeding is controlled by photoelectricity on the cotton feeder. The feeding uses two groove rollers. There are two spring-loaded. The opening roller performs dynamic and static balance processing, with a conveying air duct, and is fully closed to reduce the number of cleanings.

4. CYLMX-Pneumatic cotton box: The open fiber is further loosely mixed and processed into a uniform quilted cotton for the next process. Convenient adjustment, accurate and uniform cotton feed.

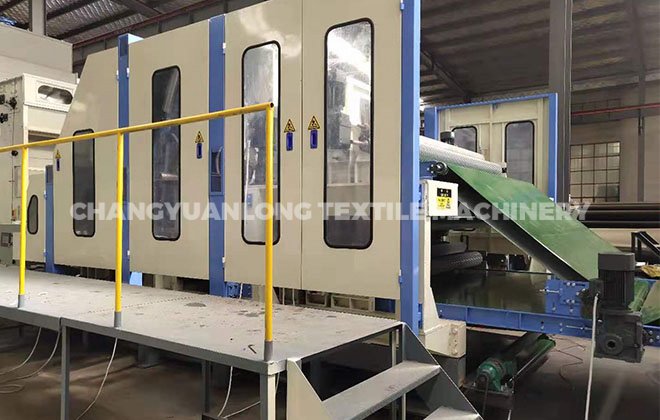

5. CYLSL-Carding Machine: This machine is double cylinder, double doffer, four messy, roller stripping. All the rollers of the machine have been quenched and tempered, and then processed precisely. The wall board is made of cast iron, and the card clothing is made of domestic high-quality card clothing, and is equipped with a suction device, which can reduce the number of cleanings and also has a walking table. It has the advantages of strong carding ability and high output.

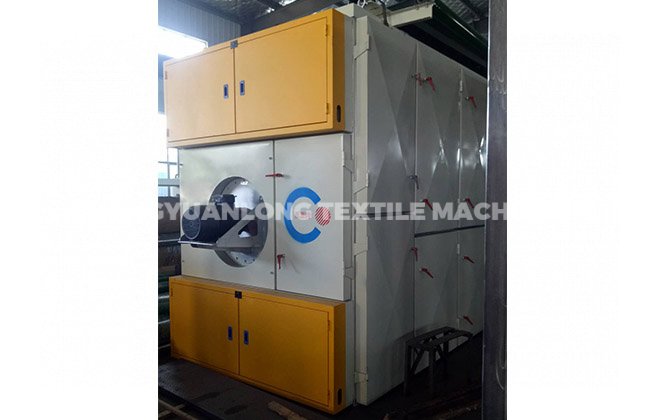

6.CYLHF-The Oven Machine: The product is evenly heated by high temperature; It is heated by electric.

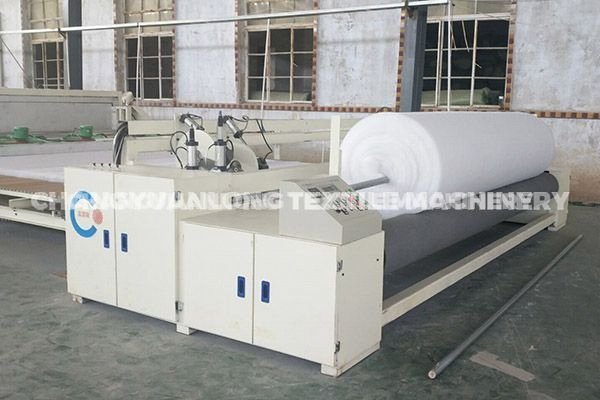

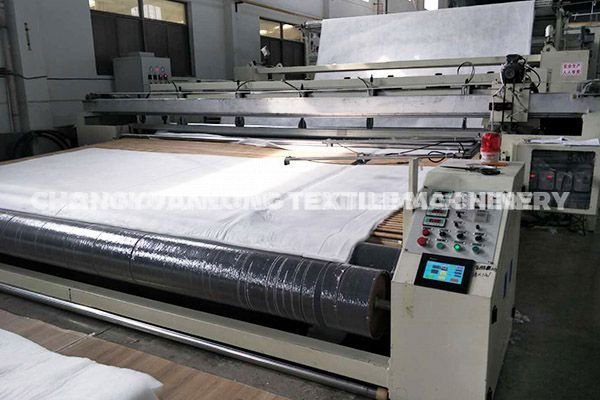

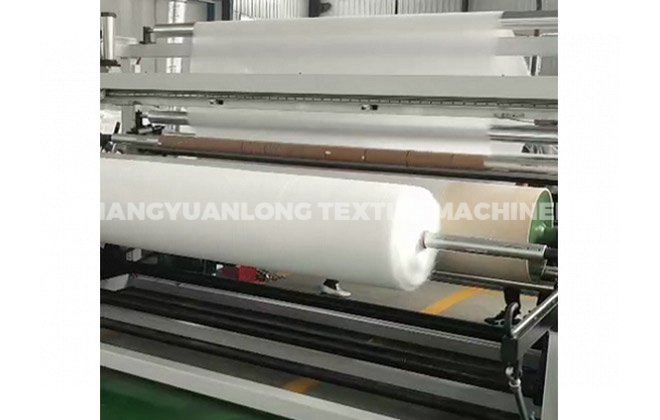

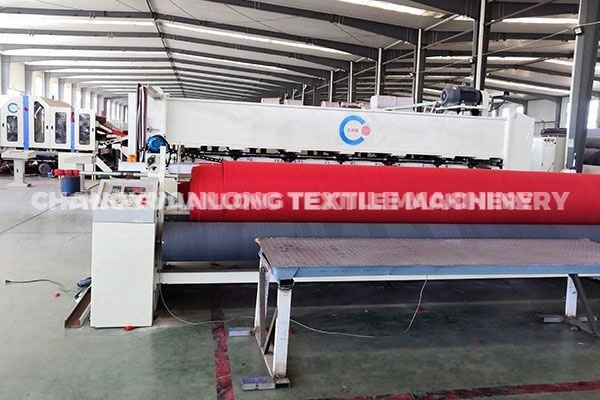

7. CYLCQ-Winder&Cutter: This machine is a steel plate structure, the frame is made of a whole piece of steel plate welding, integrating transmission and operating system. Three longitudinal hard cutting knives are used for cutting, and one horizontal flying knife is controlled by the electronic meter counter. The structure is simple, beautiful and generous.
